4500 SERIES
TILT-TURN | FIXED | HOPPER WINDOWS
A very unique product for large openings in both residential and commercial markets.
DESIGN
VERSATILITY
PERFORMANCE
REACHING TOP PERFORMANCE WITH OPERATING AND FIXED DESIGNS
The outstanding performance of the System 4500 window design is one of North America’s best-kept fenestration secrets. uPVC windows not only far exceed aluminum on thermal performance; they can also meet the highest available structural standards.
Top Performance, Intelligent Design, Timeless Style
The System 4500 is a versatile design featuring three windows in one: an inward opening casement in the turn position, a secure top-venting hopper in the tilt position, and a tightly sealed picture window when closed.
Matching doors in a variety of configurations are available. The system is available in white, beige or clay and can be laminated with solid color or wood-grain foils.
The outstanding performance of the System 4500 window design is one of North America’s best-kept fenestration secrets. uPVC windows not only far exceed aluminum on thermal performance; they can also meet the highest available structural standards.

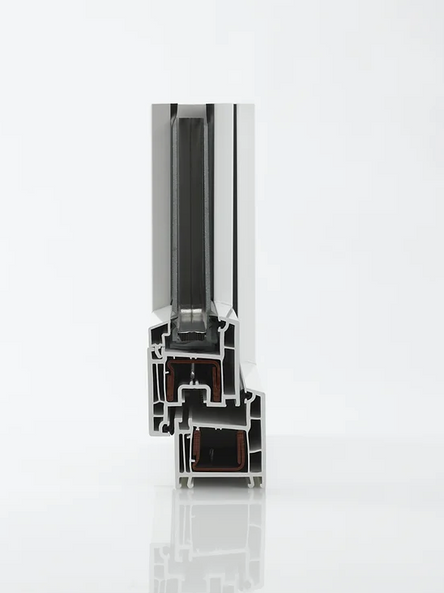

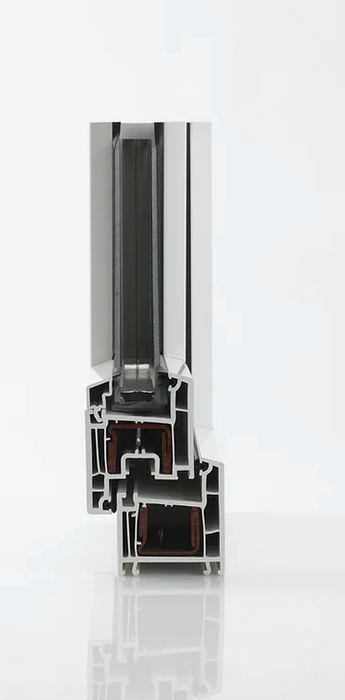

Unique tilt-turn hardware
operates in both top-venting and inward-swinging
positions
Multiple locking points and dual weather
seals provide optimal air and water tightness
Accessory groove
accepts a variety of accessories such as brick molds, extension jambs, and for profiles to couple window elements
Up to 1 3/8 in (35 mm) glass
increases energy efficiency and acoustical properties
Large chambers accommodate
reinforcements required for large openings in heavy commercial applications
3 1/4 in (83 mm) North American frame
depth allows for hassle-free replacement installation; we also offer the 2 3/8 in (60 mm) European frame
FINISHES
REHAU offers the extruded window profiles in four core colors. The proprietary uPVC formulation provides resistance against weathering with above-average quantities of Ti02 stabilizers and impact modifiers protecting against fading from solar radiation. After five years of weather testing in Arizona, REHAU's proprietary profile formulation performed better than standard uPVC. Our surface quality and higher gloss level help repel dirt and improve the trueness of color.
PERFORMANCE/TESTING
-
Thermal Insulation - U-Value down to 0.18
-
Acoustic Insulation - STC up to 45
-
Forced-entry resistance - Up to Grade 20 (per ASTM F588) without compromising thermal insulation
-
Ease of Maintenance - High-definition finish (HDF) is low maintenance and easy to clean
-
Innovative compression - Seal technology significantly reduces closing force
-
Design Freedom - Custom architectural shapes and color selection. Slim-line profiles with generous glass surfaces
